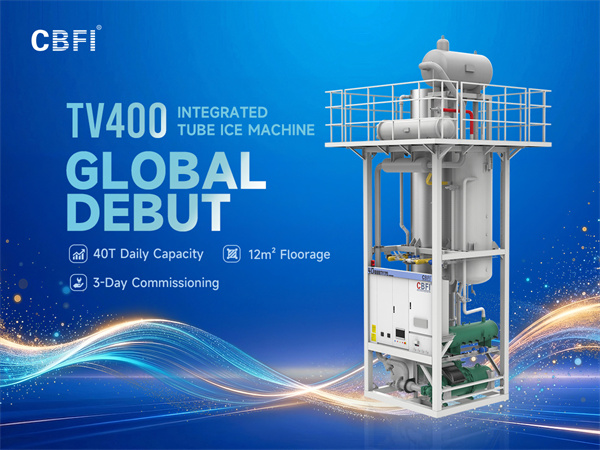

With 22 years of deep cultivation in refrigeration, we strive for this breakthrough moment.CBFI proudly presents the world’s first 40-ton integrated tube ice machine — TV400!

With integrated innovation and cutting-edge core technologies,we directly address the three major pain points of traditional ice-making:

large footprint, slow installation, and high cost,setting a new benchmark for the ice-making industry.

01. Revolution in Integrated Design

From "On-Site Assembly" to "Plug-and-Play"。

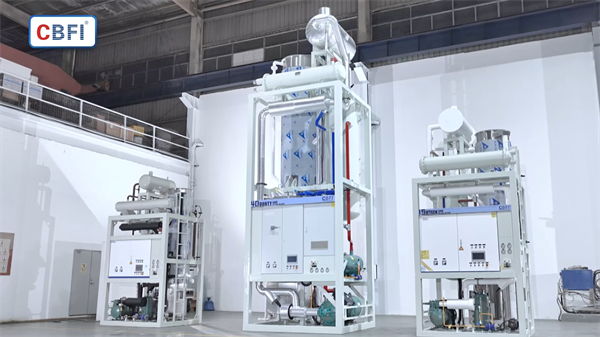

The TV400 subverts the split-type design, featuring 100% pre-assembly and pre-testing at the factory with highly integrated core systems, completely redefining the deployment logic of large-capacity ice makers.

·Ultra-High Performance | 40+ Tons/Day Output

Large-capacity evaporator ensures stable and excess production. Under standard working conditions, output exceeds the rated by 10.75%, and runs at full load even in high-temperature environments. Operating costs are 5%–8% lower than the industry average.

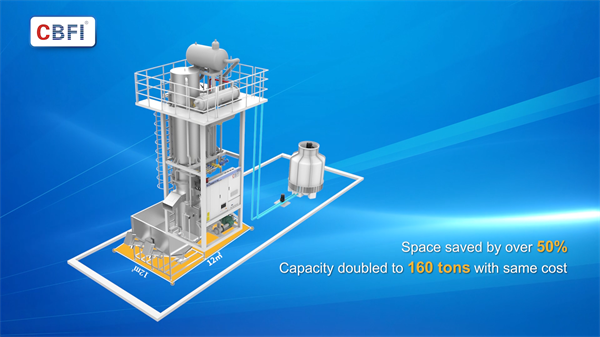

·Space-Saving | Only 12㎡ Footprint

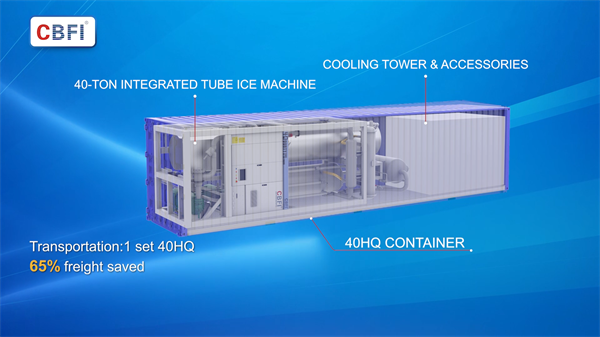

Occupies 43% less space than traditional 40-ton split-type machines. The evaporator and main unit are perfectly integrated, transportable in one single container instead of 2–3 separate packages, and adaptable to various plant layouts.

·Time-Saving | Commissioning in 3 Days

Fully pre-commissioned before delivery; only water and electricity connections are needed on-site, with no on-site pipe welding. Commissioning is 80% faster than split-type machines, securing you more than half a month of peak ice-selling period.

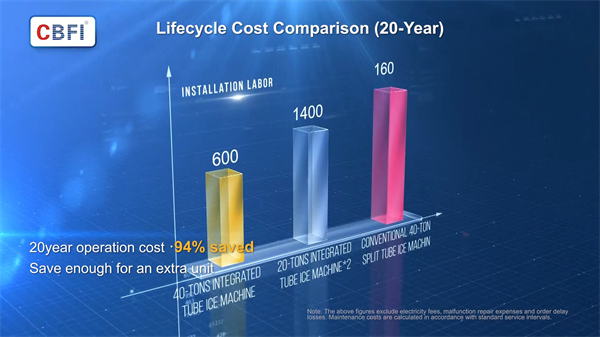

·Cost-Saving | 94% Cost Reduction Over 20 Years

Comprehensive savings in shipping, installation, and operation & maintenance. Total operating cost over 20 years is 94% lower than traditional split-type machines.

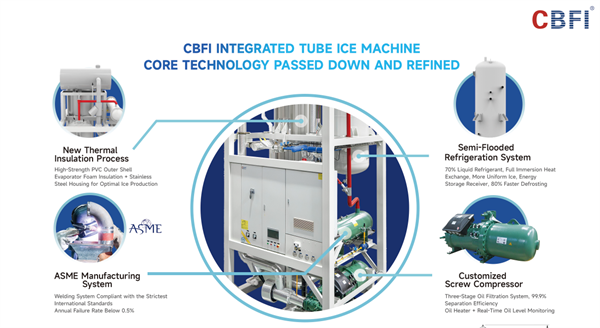

02. Core Technical Support

20 Years of Stable Performance — Strong Confidence

1. ASME Manufacturing Standard: World’s Highest Standard for Pressure Equipment

The CBFI TV400 strictly complies with ASME U Stamp specifications, building a zero-leakage refrigeration system:

• Certified welders + groove welding process increase weld strength by 50% and reduce leakage risk by 80%.
• Argon arc welding backing + electric welding capping, combined with penetrant, radiographic, and ultrasonic non-destructive testing, eliminate all internal defects.
• Full-process traceable manufacturing; core components designed for 20-year service life; annual failure rate below 0.5%.

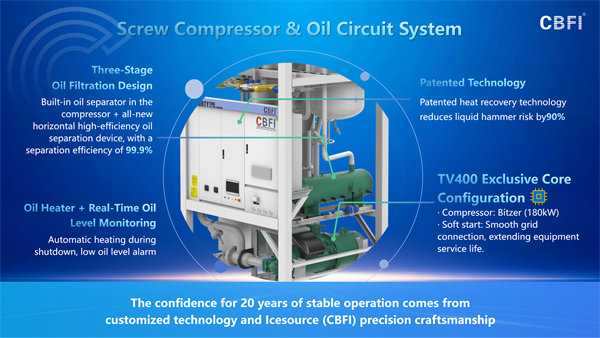

2. BITZER Screw Compressor + Patented Oil System

Equipped with an 180kW BITZER screw compressor and custom-engineered oil circuit for maximum stability:

• Three-stage oil filtration with 99.9% separation efficiency ensures long-term lubrication.
• Patented reheat technology reduces liquid shock risk by 90%; oil heater + real-time oil level monitoring with auto-alarm and intelligent heating during shutdown.
• Soft starter ensures smooth grid connection and greatly extends service life

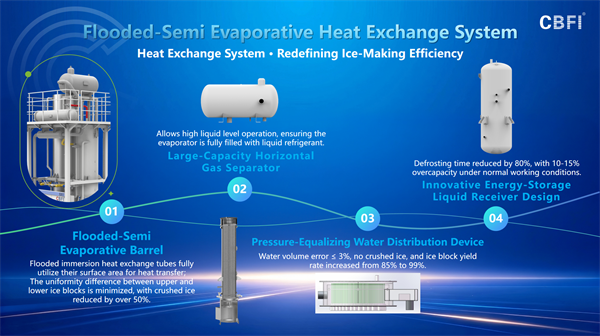

3. Semi-Flooded Heat Exchange System: Next-Level Ice-Making Efficiency

Innovative refrigeration system that redefines heat transfer and ice forming:

• Flooded heat exchange tubes ensure full heat transfer, uniform ice formation, and over 50% less crushed ice.
• Large horizontal gas–liquid separator + pressure-equalized water distributor keep water flow error ≤ 3%, raising ice yield from 85% to 99%.

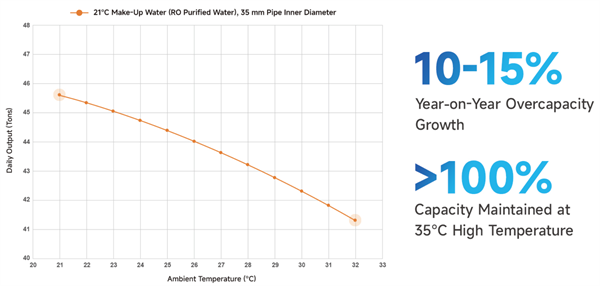

• Energy-storing receiver design cuts harvest time by 80%; output exceeds rated by 10–15% under normal conditions, maintaining 100% capacity at 35℃.

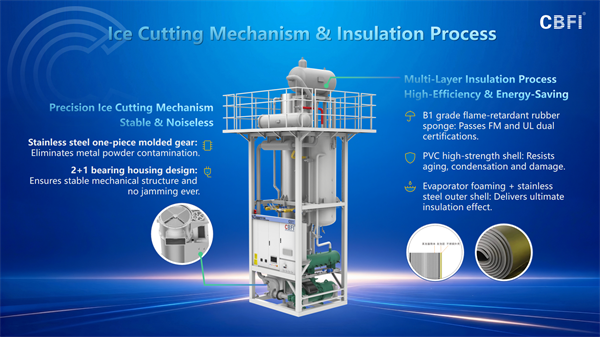

4. Precision Ice Cutting + Multi-Layer Insulation: High Efficiency & Durability

• One-piece stainless steel ice-cutting gear eliminates metal powder contamination; 2+1 bearing design ensures rigid structure, zero jamming, quiet and stable operation.
• B1-grade flame-retardant rubber sponge + high-strength PVC casing + evaporator foaming insulation, certified by FM and UL. Energy efficiency is 5–8% above industry average, with anti-condensation, anti-aging, and long-lasting energy saving.

03.  Product Profile

Not All Integrated Machines Are the TV400

·Daily Output: 40 Tons / 24H

·Ice Tube Diameter: φ22 / φ28 / φ35mm (optional)

·Dimensions: 2500×2250×8150mm

·Cooling Method: Water-Cooled

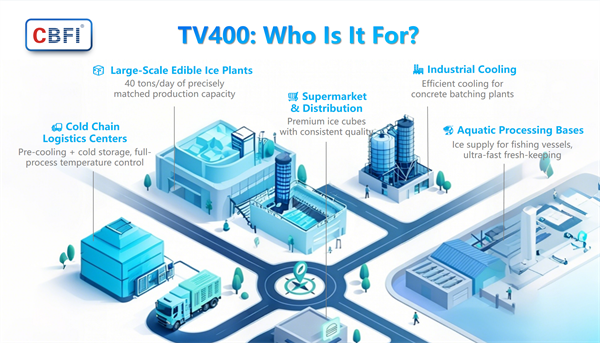

·Applications: Large edible ice plants, seafood processing, cold-chain logistics, industrial cooling, supermarket distribution, fishing vessel ice supply, and more.

With 22 years of technological accumulation, CBFI’s TV400 integrated tube ice machine achieves breakthroughs in space, speed, cost, and technology, making ice-making more efficient and more cost-efficient.

We look forward to partnering with global customers, aiming to become a world-leading provider of ice-making equipment and food freezing solutions, building a high-quality development ecosystem for the refrigeration industry, and creating a win–win future together!
